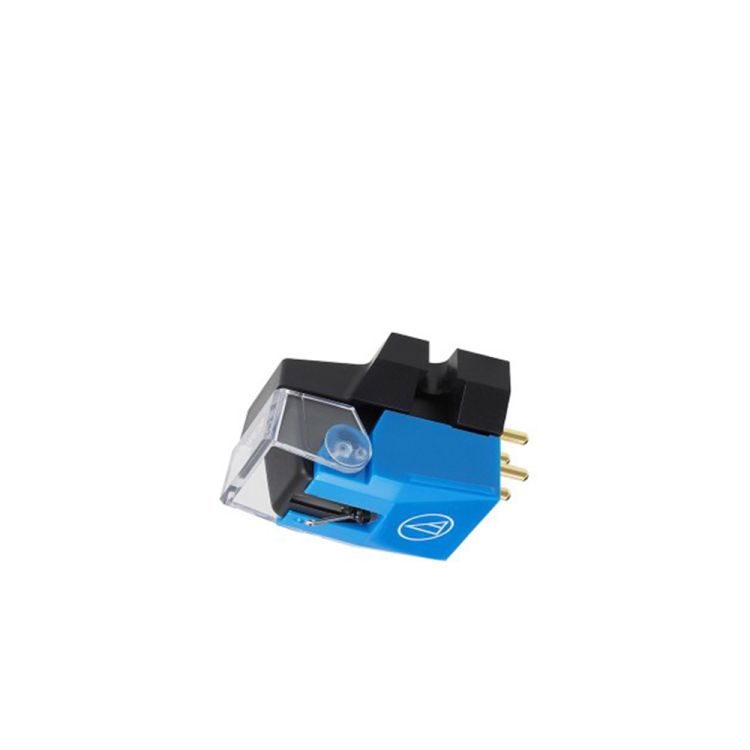

Audio Technica AT-VM510CB
Dual Moving Magnet stereo glava s konično iglo.
Gramofonska glava VM510CVB ima konično iglo, ki ponuja natančen nagib in lažjo uporabo z različnimi gramofonskimi rokami.
Opremljena z VM dual magnet zasnovo, ki zagotavlja vrhunsko ločevanje kanalov, izboljšan frekvenčni razpon in vrhunsko sledenje brazde vaših najljubših plošč, na telesu iz aluminija.
| Frequency Response | 20-20,000 Hz |
| Channel Separation | 25 dB (1 kHz) |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Output | 5.0 mV (at 1 kHz, 5 cm/sec) |
| Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | 0.6 mil conical |
| Cantilever | Aluminum pipe |
| Mount | Half-inch |
| Replacement Stylus | VMN10CB |
Coil Impedance: 2,700 ohms (1 kHz)
DC Resistance: 800 ohms
Load Capacitance: 100-200 pF
Coil Inductance: 460 mH (1 kHz)
Static Compliance: 35 x 10-6 cm/dyne
Dynamic Compliance: 8 x 10-6 cm/dyne (100 Hz)
Vertical Tracking Angle: 23°
Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D
Weight: 6.4 g (0.2 oz)
Accessories Included: Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts
